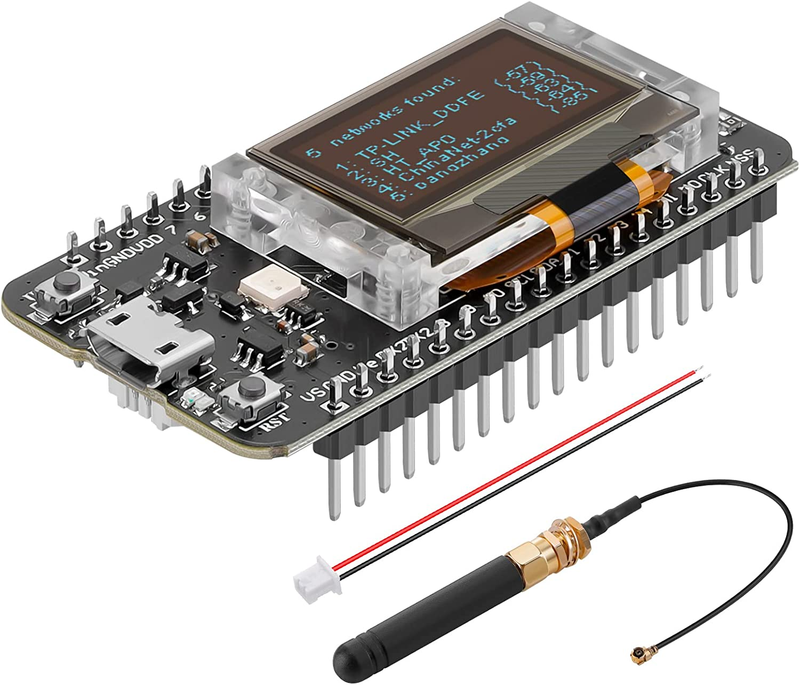

Lora GPS Module Lorawan 863 923Mhz Development Board Lora Kit Ultra Low

Lora GPS Module Lorawan 863 923Mhz Development Board Lora Kit Ultra Low Power Design CP2102 SX1262 ASR6502 Chip with 0.96 Inch OLED Display and Antenna for Ar Duino and Intelligent Scene
Description Item model number U0CGDI77W16MU9R47168 Display Type OLED Are Batteries Included No Color Black Memory Storage Capacity 128 KB Country of Origin China Vehicle Service Type Arduino 2 Item Weight 24 Grams Connectivity Technology LoRa Display Size 0.96 Inches Control Method App Screen Size 0.96 Inches Package Dimensions 6.2 x 3.9 x 0.8 inches

Note: LoRa GPS module comes unassembled and needs to be aseeembled by yourself

Ultra Low Power Design and Application: 21uA in deep sleep; Compatible with Ar duino, AT command and GPS, integrated encryption algorithm

IoT Board: Based on ASR6052, those chips are already integrated the MCU and SX1262

Onboard Solar Energy Management System and Lithium Battery Management System: It can directly connect with a 5.5~7V solar panel; Onboard SH1.25-2 battery interface, charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching

OLED Display Screen: Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power, and other information

CubeCell series is based on ASR6502, those chips are already integrated with the PSoC 4000 series MCU and SX1262. We have done a lot of migration and development, made it perfectly support Arduino, can run the LoRaWAN protocol stably, can easily connect lithium batteries and solar panels. HTCC-AB02S is a Development Board. Already integrated AIR530Z GPS module, friendly designed for developers, easy to verify communication solutions. Feature: Perfect Arduino-Compatible; Based on ASR6052, those chips are already integrated the PSoC 4000 series MCU (and SX1262; LoRaWAN 1.0.2 support; Ultra low power design, 21uA in deep sleep; Onboard solar energy management system, can directly connect with a 5.5~7V solar panel; Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching); Micro USB interface with complete ESD protection, short circuit protection, RF shielding, and other protection measures; Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing; Good impedance matching and long communication distance; Use Air530 GPS module, GPS / Beidou Dual-mode position system support; Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power, and other information. Parameter: Master Chip: ASR6502 LoRa Chipset: SX1262 USB to Serial Chip: CP2102 Frequency: 863~923 MHz Max TX Power: 22 ± 1 dBm Receiving Sensitivity: -135 dBm Solar Energy: 5.5～7V solar panel Low Power: Deep Sleep 21μA Hardware Resource: UART x 2; SPI x 2; I2C x 2; SWD x 1; 12-bits ADC input interface x 3; 8–channel DMA engine; GPIO x 16 Memory: 128KB internal FLASH; 16KB internal SRAM Interface: Micro USB x 1; LoRa Antenna interface(IPEX) x 1; 18 x 2.54 pin x 2 Battery: 3.7V Lithium（SH1.25 x 2 socket） Operating Temperature: -20 ~ 70 ℃ Dimensions: 55.9 x 27.9 x 9.5 mm Display Size: 0.96-inch OLED Package Content: 1 * LoRa GPS Module 1 * Battery Power Cord 1 * Antenna
